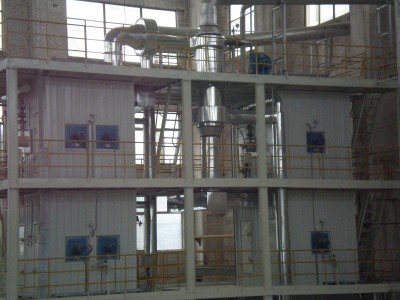

预脱浆炉（电子级玻璃纤维布预脱浆生产线）
Pre desizing furnace (pre desizing production line)
采用热处理法去除浸润剂（淀粉型），将玻璃纤维布上的浸润剂、浆料在一定温度、一定时间内使其分解炭化和去除。处理后的玻璃纤维布的外观是茶褐色，仍保存浸润剂残留量为0.2-0.4%，保留强度为70%。为了达到浸润剂少而又有较高的保留强度，还必须再处理，进入分批热处理阶段（焖烧炉）。
Heat treatment method of removing infiltration agent (starch) is used to  breakdown and removal Glass fiber mat of the infiltration agent and sizing agent in a certain temperature and a certain period of time.The appearance colour of the glass fiber cloth after processing is dark brown , but it also preserves 0.2-0.4% of infiltration agent residues and its retained strength is 70%.It must be disposaled again that enters partial heat treatment phase(burning furnace) for reducing sizing and improving the retention strength.
技术性能：
①炉子用途：无碱玻璃布预脱浆
②工作温度：400℃
③炉温均匀性：±5℃
④生产能力：~4000m/h
⑤加热时间：~60秒
⑥传动系统运行速度：10-80m/min
⑦玻璃布幅宽：1.27m
⑧能源：电、天然气、煤气、油、蒸汽（根据用户能源选择）

technical characteristic:
① The use of the furnace: Non-alkali glass prepare to desize
② Working temperature: 400 ℃
③ The uniformity of furnace temperature: ±5 ℃
④ Production capacity: ~ 4000 m/h
⑤ Heating time: ~ 60 seconds
⑥ The running speed of transmission system: 10 - 80 m/min
⑦ Glass cloth width: 1.27 m
⑧ Energy: electricity, natural gas, gas, oil, steam (energy according to user's choice)



设备特点：
结构简单，四室钢结构平台，维护方便；
体积小，占地面积小；
配置废气净化焚烧装置，回收利用废气余热，有利于环境保护；
炉子六区控制温度，温度均匀；
炉体为分体开合结构，一侧壳体固定，另一侧壳体吊挂在支撑轮上，可以移动，便于维修；

Machine Features：
Simple structure, four chambers steel structure platform, convenient maintenance;
Small volume, cover an area small;
Burned waste gas purification device, recycle waste heat of the waste gas, it is environmental protection;
Six area controls temperature, furnace temperature uniformity;
The structure of furnace is opening and closing of fission structure, on side of the shell is fixed and the other side of it is hanged on the return roller,it can move and it is easy to maintain;
