Enata选择Sicomin环氧树脂用于高性能箔片项目
发布日期:2018-11-07  来源:JEC  浏览次数:728

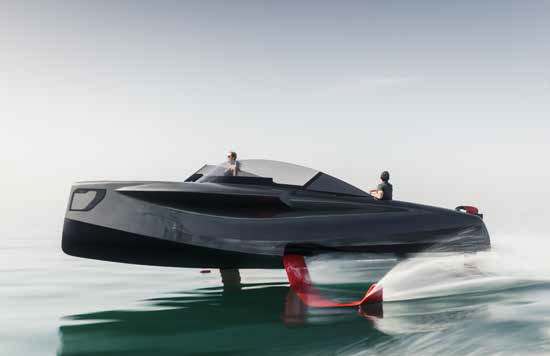

   Enata Foiler是一种机动游艇设计的演变,其水力发电系统毫不费力地将游艇悬挂在海浪上方1.5米处。Enata在飞行中保持稳定和平稳,设计了一种能够提供超级跑车性能和操控性的豪华游艇的舒适性。Sicomin自2016年起与Enata合作,在为该项目选择环氧树脂时,它是自然的选择。

  它的四个专利箔使船体能够在水面上方1.5米处飞行,提供舒适的全速行驶,并允许翻边机进行平稳,快速的转弯,就像您对超级跑车的期望一样。完全可伸缩的箔片不会侵入或影响生活空间,只需按一下按钮,就可以选择更“传统”的摩托车; 并且在系泊时收缩箔片,系统的保养和维护是直截了当的。
  Enata Foiler是一种机动游艇设计的演变,其水力发电系统毫不费力地将游艇悬挂在海浪上方1.5米处。Enata在飞行中保持稳定和平稳,设计了Foiler,通过超级跑车的性能和操控性来提供豪华游艇的舒适性。Sicomin自2016年起与Enata合作,在为该项目选择环氧树脂时,它是自然的选择。
  推进系统包括两个300HP柴油/电动混合动力发动机,可与定制电子鱼雷配合使用,在驾驶时提供不同的燃料配置选项,并与箔片配合使用,在不同的天气条件下提供高达40节的令人印象深刻的升力。

  Enata的理念是通过高性能来定义的,并且为了在所有应用中实现这一目标 - 从获得世界冠军的航空航天设计到风筝箔到建筑项目 - 设计以先进的复合材料技术为基础。Foiler的明显结构选择是注入碳纤维和环氧树脂。碳纤维提供高强度和刚度,特别是四个箔所需的,并且能够构造重量更轻的船体,从而允许通过混合驱动系统实现完全提升。对于典型的较重的E-玻璃结构,这种性能是不可能的。Enata选择了Sicomin先进的环氧树脂灌注和层压系统,用于船体和Foiler的结构,结合了卓越的机械性能和优化的加工特性。使用了Sicomin的SR8100环氧树脂系统,专门用于树脂转移过程,如注射或输液。该系统在环境温度下具有非常低的粘度,并且可以与不同的硬化剂一起用于小型或大型部件的模制,具有快速脱模时间。此外,SR8100树脂系统的Germanischer Lloyd认证批准为Enata提供了对Sicomin产品质量和一致性的进一步验证。
  “我们在过去几年里曾与Sicomin合作过各种项目,并对他们提供的高质量产品充满信心,”Enata创始人Sylvain Vieujot说。“例如,我们的风筝板生产采用了Sicomin的生物基树脂,我们在航空航天,工业和建筑项目中使用各种灌注和层压系统。Enata汇集了一支在先进复合材料结构方面具有丰富经验的团队,我们非常感谢像Sicomin这样技术高,反应迅速的公司的支持。他们的标准产品永远不会达到我们的高期望,我们知道我们可以与他们合作,在需要时提供定制产品。“

原文如下:
  The Enata Foiler is an evolution in motor yacht design with its hydro-foiling system effortlessly flying the yacht 1.5m above the waves. Stable and smooth in flight, Enata has designed the foiler to deliver the comfort of a luxury yacht with the performance and handling of a super car. Sicomin has worked with Enata since 2016 and was the natural choice when it came to the selecion of epoxy resins for the project.
  Enata chooses Sicomin epoxies for high performance foiler
  Its four patented foils enable the hull to fly 1.5m above the water, providing a comfortable ride at full speed and allowing the foiler to make smooth and speedy turns, much like you’d expect from a supercar. The fully retractable foils, which do not intrude or impact on the living space, also give options for more ‘conventional’ motoring at the touch of a button; and with the foils retracted when moored, care and maintenance of the system is straightforward.
  The Enata Foiler is an evolution in motor yacht design with its hydro-foiling system effortlessly flying the yacht 1.5m above the waves. Stable and smooth in flight, Enata has designed the Foiler to deliver the comfort of a luxury yacht with the performance and handling of a super car. Sicomin has worked with Enata since 2016 and was the natural choice when it came to the selecion of epoxy resins for the project.
  The propulsion system comprises twin 300HP diesel/electric hybrid engines, which work with custom electric torpedoes, providing different fuel configuration options when driving, and working with the foils to provide the impressive lift at up to 40 knots and in varying weather conditions.
  Enata chooses Sicomin epoxies for high performance foiler
  Enata’s philosophy is defined by high performance, and to achieve this across all their applications - from World Championship-winning aerospace designs to kite foils to architectural projects – designs are underpinned by advanced composites technology. The clear construction choice for the Foiler was infused carbon fibre and epoxy resin. Carbon fibre provides high strength and stiffness, particularly required for the four foils, and enables the construction of a lower weight hull allowing full lift to be achieved with the hybrid drive system. This performance wouldn’t be possible with a typical heavier E-glass structure. Enata chose Sicomin’s advanced epoxy infusion and laminating systems for the hull and structure of the Foiler, combining excellent mechanical performance with optimised processing characteristics. Epoxy resin is stronger than alternative resin types, has good fatigue performance and durability, and is proven to work well when combined with carbon fibre in highly loaded structures like the Foiler.
  Sicomin’s SR8100 epoxy system was used, having been specially formulated for resin transfer processes such as injection or infusion. The system has a very low viscosity at ambient temperature and can be used with different hardeners for the moulding of small or large parts, with fast demoulding time. In addition, the Germanischer Lloyd certification approval for the SR8100 resin system provided Enata with further validation of the quality and consistency of Sicomin’s products.
  “We have worked with Sicomin on various projects over the last few years and have every confidence in the high quality products they supply,” says Sylvain Vieujot, Founder of Enata. “Our kite board production, for example, uses Sicomin’s bio-based resins, and we use their various infusion and laminating systems in our aerospace, industrial and architecture projects. Enata has brought together a team of people with extensive experience in advanced composite structures, and we appreciate the support of a highly technical and responsive company like Sicomin. Their standard products never fail to deliver on our high expectations, and we know we can work with them to deliver custom products when needed.”
